Milling Services
Upload your CAD files to get a free milling quote for a high quality product at a competitive price.
CNC Milling
At Tesh Engineering, we invest in state-of-the-art equipment to ensure precision, reliability, and high-quality results for every project. Below are the details of our top-tier CNC milling machines, which help us deliver exceptional service and meet your needs.

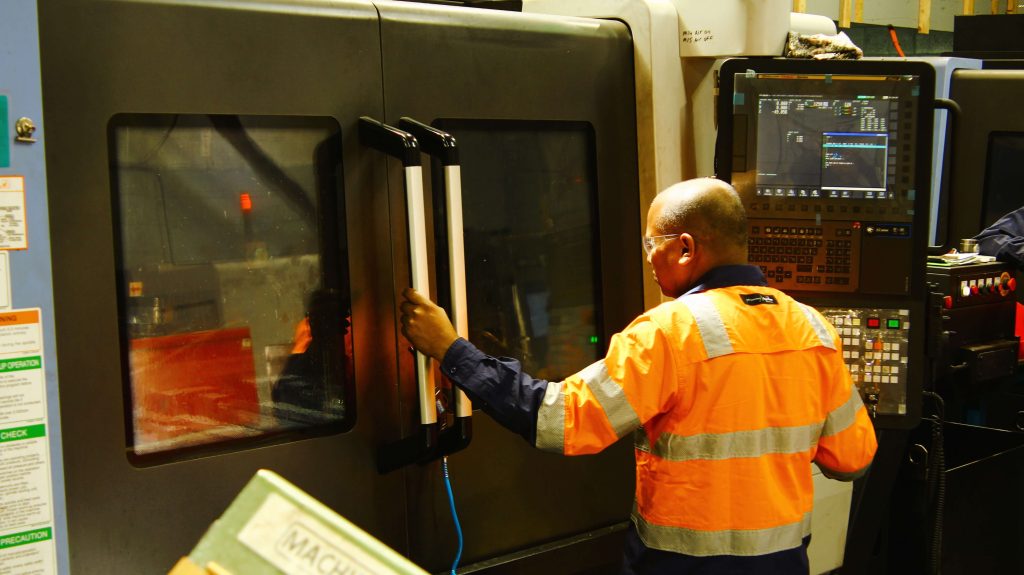

Doosan DNM 6700 - 3-Axis CNC Milling Machine
- Travel:
- X-Axis: 1,000 mm (39.4 inches)
- Y-Axis: 600 mm (23.6 inches)
- Z-Axis: 560 mm (22 inches)
- Table Size: 1,050 mm x 600 mm (41.3″ x 23.6″)
- Spindle Speed: 12,000 RPM
- Maximum Load Capacity on Table: 500 kg (1,102 lbs)

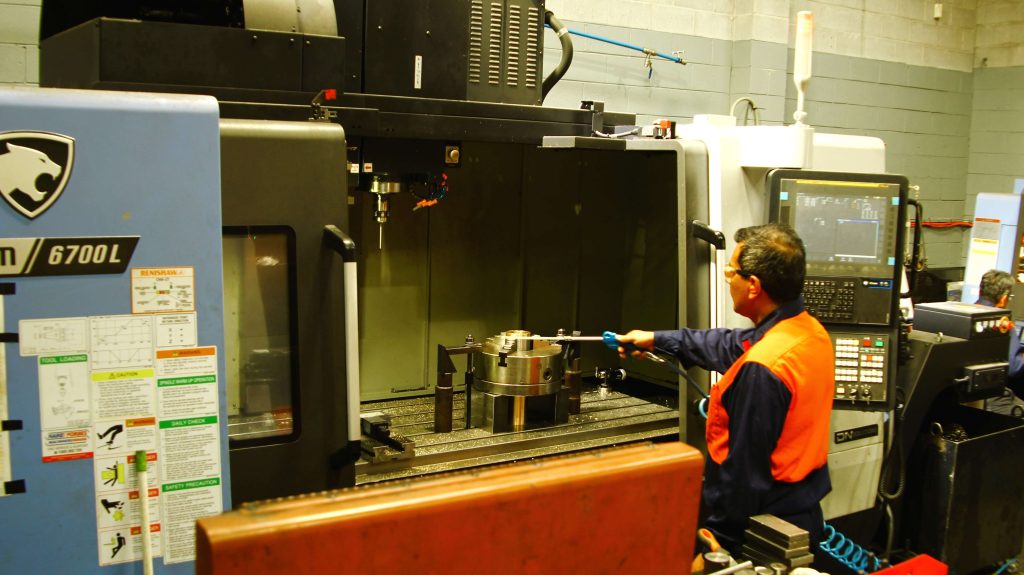

Doosan DNM 6700L - 3-Axis CNC Milling Machine
- Travel:
- X-Axis: 1,400 mm (55.1 inches)
- Y-Axis: 670 mm (26.4 inches)
- Z-Axis: 600 mm (23.6 inches)
- Table Size: 1,300 mm x 670 mm (51.2″ x 26.4″)
- Spindle Speed: 12,000 RPM
- Maximum Load Capacity on Table: 500 kg (1,102 lbs)

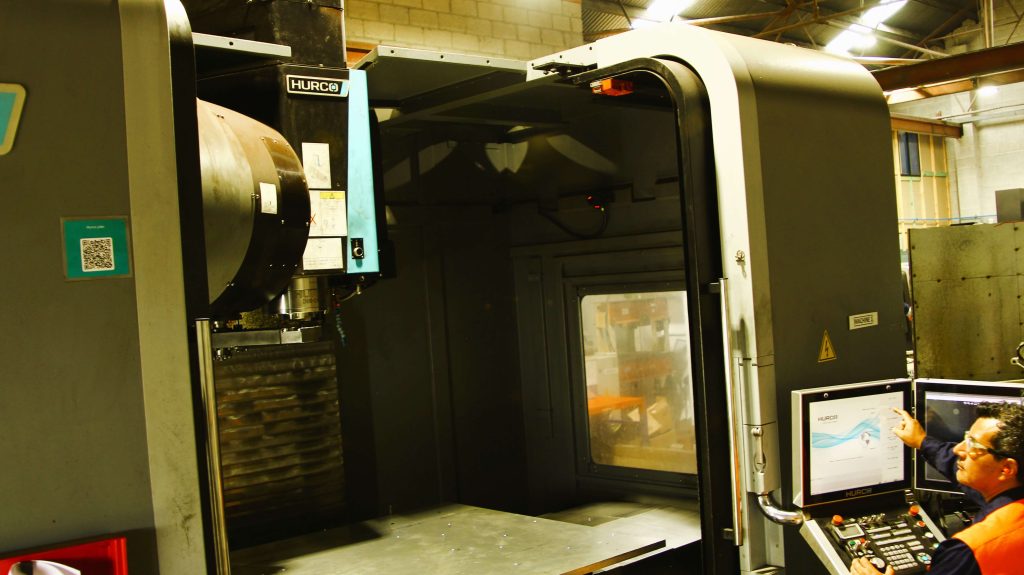

Hurco VMX64Ti - 3-Axis CNC Milling Machine
- Travel:
- X-Axis: 1,625 mm (64 inches)
- Y-Axis: 660 mm (26 inches)
- Z-Axis: 635 mm (25 inches)
- Table Size: 1,625 mm x 660 mm (64″ x 26″)
- Spindle Speed: 12,000 RPM (option to upgrade to 15,000 RPM)
- Maximum Load Capacity on Table: 500 kg (1,102 lbs)

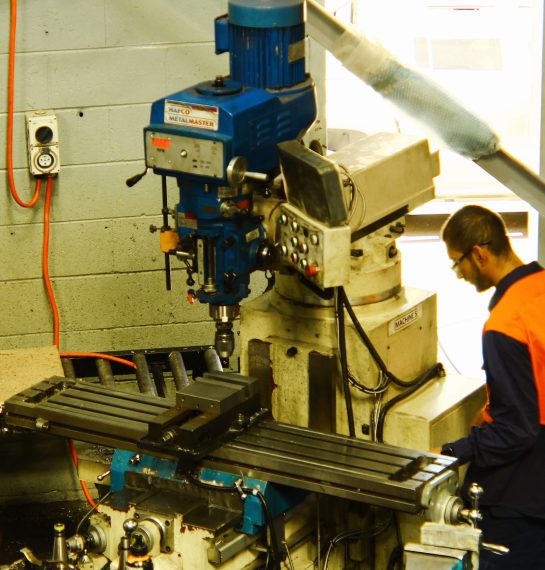

Manual Milling
Transform your workshop with a high-performance vertical milling machine designed for precision, versatility, and durability. Whether crafting intricate prototypes or tackling large-scale production runs, this machine ensures flawless results with every operation.
Key Specifications:
- Table Size: 1370 mm x 254 mm Spindle Taper: NT40
- Spindle Speeds: 50 – 3550 rpm (Variable Speed)
- X-Axis Travel: 890 mm
- Y-Axis Travel: 400 mm
- Z-Axis Travel: 400 mm
- Power Feed Rates: 20 to 2000 mm/min
- Motor Power: 3.75 kW (5 hp)
Quality Assurance
As a leader in manufacturing solutions for general and precision engineering, we are dedicated to delivering excellence in every project. Our commitment to the highest industry standards ensures flawless processes, efficient workflows, and outstanding client satisfaction, while prioritizing environmental sustainability and workplace safety at every step.
